China PE Coated Aluminum Coil/Polyethylene Coated Aluminum Coil Manufacturers,Suppliers,Wholesale,Min Aluminum Co., Ltd

PE Coated Aluminum Coil/Polyethylene Coated Aluminum Coil

 PE Coated Aluminum Coil

Alloy: 1100 3003 5005 1050 1060 1070 3012 8011

Temper: O H12 H14 H16 H18 H22 H24 H26

Aluminum thickness:0.06MM-1.0MM

Aluminum width:600MM-1570MM

Standard width:1240mm

Color:color refer to our standard color catalog ,also can produce according to your requirement.

Weight :2-3mt per coil


Packaging:export standard packaging

Shipment:within 20days after receipt of your prepaid.

Payment:T/T or L/C

MOQ:5tons per size

 Process Of Color Affirmation

1.For custom’ color requests, we can deal as following:

Firstly please provide us physical sample of custom color. A color sample on metal is preferred. If other, it is also acceptable.  But the color matching rate may be not good as color on metal.

Secondly the new color sample is usually offered by our paint supplier in 5-7 days, special color should be in 7-10 days.

Thirdly, upon receipt of color sample, please approve in writing as soon as possible. Once you approved, we will arrange purchasing and production.

Note:Color difference maybe occurred in different production batch, so it is suggested all panels are placed in one order for same project. And keep same direction as arrow on protective film to avoid any color difference by vision.

2.For general colors, please refer to our color chart

 Technical data PE Coated Aluminum Coil

Coating film thickness Min 16um 16um(average 17um)
Gloss tolerance ≤10(Gloss<70)
≤5( Gloss≥70)
Pencil hardness ≥HB 3H
Coating flexibility ≤3T 1T
Impact Resistance No depainting no crack No depainting no crack
Solvent Resistance No change No change
Abrasion Resistance ≥1000times no change ≥1000times no change
Boiling-water resistance No change No change
Acid Resistance No change No change
Alkali resistance No change No change
Oil resistance No change No change

 Package of Coated Aluminum Coil

 Application of PE Coated Aluminum Coil

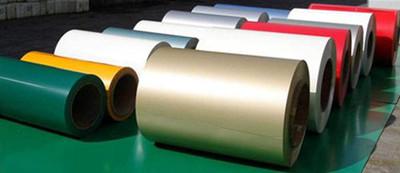

 About Coated Aluminium Coil

Coated aluminum coil refers to the aluminum coil aluminum coil through coating and coloring treatment generally includes PE coated aluminum coil and PVDF coated aluminum coil.Coated aluminum coil is widely used to manufacture aluminum composite panel, aluminum ceiling, roofing, aluminum veneer, signboards, roofs and canopies, tunnels, column covers or renovations.
